Solárny regulátor 12-24V/30A -G921AKoax kábel RG59/MILC-17-čierny -NORDIX401

Amiko X-Finder + CICXE +2xUSB


Amiko X-Finder + CICXE +2xUSB
View Full-Size Image


Price:

240,83 €
289,00 € (including 20 % tax)

Na sklade: Áno Ask a question about this product
Availability

In Stock: 6




Merací prístroj pre DVB-S2/T2/T/C so zabudovanou čítačkou kariet a CI slotom, LAN konektorom a 2xUSB2.0 konektormi.

  • Satellite, Terrestrial (T & T2) & Cable Signal Measurement
  • One Conax Embedded Card Reader
  • One Common Interface Slot
  • Blind Scanning
  • Satellite Spectrum Analyzer
  • Satellite Dish Angle Calculator
  • Full Feature Portable HD Set-Top Box
  • Two High Speed USB2.0 connections
  • Full HD Digital Video Output through HDMI
  • Multimedia Playback (MKV, AVI, MPG, MP3, MP4, etc...)
  • RCA In & Output for External Video Sources & Displays
  • Easy Database Management and Transfer via USB
  • Dynamic Error Rate Calculation & Display
  • Automatic DiSEqC 1.0 configuration detection
  • Unicable & DiSEqC 1.0, 1.1, 1.2 & USALS support
  • Ethernet Connection & USB WiFi Support
  • 5.5Ah Battery with Life Up to 6 Hours
  • Remote Control & Car Charger included
  • DC12V output connection
  • Easy Software Upgrades through USB & Internet

Satellite Tuner:
Tuner Type: DVB-S / S2
Input Connector: F-Type (Female)
Frequency Range: 950MHz ~ 2150MHz
Signal Level: -65 to -25dBm
LNB Power & Polarizations: Vertical: +t13V / +13.5V, Horizontal: +18V / +18.5V
Current: 300mA, Overload Protection
22KHz Tone: Frequency: 22±1 KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS (Amplitude: 0.6±0.2V)
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45Mbps, Convolution Code Rate
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3, 2/5, 3/5, 4/5, 8/9, 9/10 and Auto

Terrestrial Tuner:
Tuner type: DVB-T / DVB-T2
Input Connector: IEC-Type (Female)
Signal Level: Nordig Compliant, DBOOK Compliant
DVB-T FEC: Viterbi + Reed Solomon 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2 FEC: LPDC + BCH 1/2, 3/5, 2/3, 3/4, 5/6
Input Frequency: 47 ~ 862MHz
Constellation: QPSK, 16QAM, 64QAM, 256QAM
Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
FFT Mode: 1k, 2k, 4k, 8k, 16k, 32k normal and extended
Channel Bandwidth: 6 / 7 / 8 MHz
Antenna Power Output: 5V (50mA max.)
Demodulation: COFDM 2K/8K
Number of Carriers: 1705 / 6817

Cable Tuner:
Tuner type: DVB-C
Input Connector: IEC-Type (Female)
Frequency Range: 47 ~ 862 MHz
Signal Level: -20dBmV ~ +20dBmV
Bandwidth: 7 / 8MHz
Demodulation: 64 / 128 / 256 QAM
Input Symbol Rate: 1.5 ~ 7 Ms/s

System Resources:
Main Processor: 594MHz
Flash Memory: 8MB (64Mbits)
DDR SDRAM: 128MB (1024Mbits)

Power Supply:
Input Voltage: 14.5V DC (4A)
Battery: 11.1V (5.0Ah)
Battery Charging Time: ~3.5 Hours
Battery Discharging Time: ~5-6 Hours

MPEG TS A/V Decoding:
Transport Stream: MPEG-2, H.264
Input Rate: Max. 120Mbit/s
Aspect Ratio: 4:3, 16:9
Video Decoding: MPEG-2, MP@ML, MPEG-4 Part 10 / H.264
Video Resolution: 720x480p/i, 720x576p/i, 1280x720p, 1920x1080p/i
Audio Decoding: MPEG-1 layer I/II, MPEG2 layer II, Dolby Digital, Dolby Digital Plus
Audio Mode: Left / Right / Stereo / Mono
Sampling Rate: 32, 44.1 and 48KHz

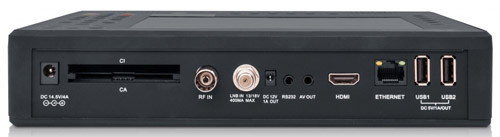

A/V & Data Input / Output:
A/V In/Out: CVBS Video Input / Output, Audio L/R Input / Output
HDMI: Ver1.3 (Type A)
USB Host: 2x Type-A (High Speed USB2.0) slot
Ethernet: RJ45 (10/100M)
RS-232C: 3.5mm Jack Type (Transfer Rate: 115.2Kbps)

Physical Specifications:
LED Display: 7 inch
Size (WxHxD): 242mm x 160mm x 46mm
Net Weight: <2Kg
Operation Temperature: 0ºC ~ 45ºC
Storage Temperature: -10ºC ~ 70ºC
Storage Humidity: 5% ~ 95% RH (Non-Condensing)
